nanoplus offers FP laser diodes at any wavelength between 1100 nm and 1700 nm.
parameters
|
symbol
|
unit
|
minimum
|
typical
|
maximum
|
---|---|---|---|---|---|
parameters
operating wavelength (at Top, Iop) |
symbol
λop |
unit
nm |
minimum
-20 |
typical
specify |
maximum
+20 |
parameters
optical output power (at λop) |
symbol
Pop |
unit
mW |
minimum
|
typical
10 |
maximum
|
parameters
operating current |
symbol
Iop |
unit
mA |
minimum
|
typical
45 |
maximum
|
parameters
operating voltage |
symbol
Vop |
unit
V |
minimum
|
typical
2 |
maximum
|
parameters
threshold current |
symbol
Ith |
unit
mA |
minimum
|
typical
50 |
maximum
|
parameters
operating chip temperature |
symbol
Top |
unit
°C |
minimum
+20 |
typical
+25 |
maximum
+50 |
parameters
operating case temperature (non-condensing) |
symbol
TC |
unit
°C |
minimum
-20 |
typical
+25 |
maximum
+50 |
parameters
storage temperature (non-condensing) |
symbol
TS |
unit
°C |
minimum
-40 |
typical
+20 |
maximum
+80 |
nanoplus Fabry-Pérot lasers show outstanding spectral and electrical properties.

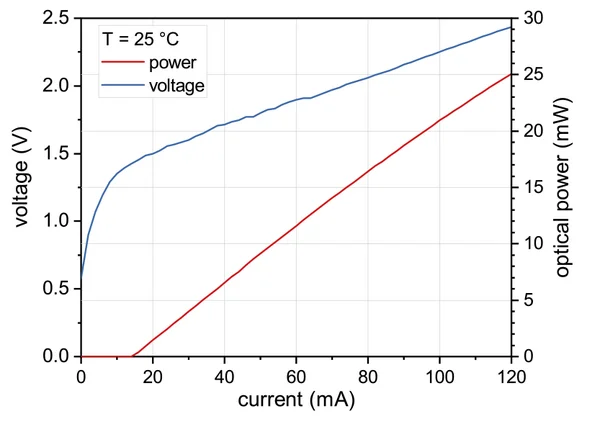

Typical power, current and voltage characteristics of a nanoplus 1590 nm Fabry-Pérot laser diode
Typical spectrum of a nanoplus 1590 nm Fabry-Pérot laser diode
nanoplus uses a unique and patented technology for Fabry-Pérot laser manufacturing. We follow a ridge waveguide approach, which is independent of the material system.
