1700 nm - 2400 nm Fabry-Pérot Laser

Discover Our Wavelengths

Fabry-Pérot Laser

1700 nm - 2400 nm Fabry-Pérot Laser

nanoplus offers FP laser diodes at any wavelength between 1700 nm and 2400 nm.

Specifications
Mountings & Accessories
Specifications
parameters
symbol
unit
minimum
typical
maximum
parameters

operating wavelength (at Top, Iop)

symbol

λop

unit

nm

minimum

-20

typical

specify

maximum

+20

parameters

optical output power (at λop)

symbol

Pop

unit

mW

minimum
typical

10

maximum
parameters

operating current

symbol

Iop

unit

mA

minimum
typical

120

maximum
parameters

operating voltage

symbol

Vop

unit

V

minimum
typical

2

maximum
parameters

threshold current

symbol

Ith

unit

mA

minimum
typical

45

maximum
parameters

operating chip temperature

symbol

Top

unit

°C

minimum

+20

typical

+25

maximum

+50

parameters

operating case temperature (non-condensing)

symbol

TC

unit

°C

minimum

-20

typical

+25

maximum

+50

parameters

storage temperature (non-condensing)

symbol

TS

unit

°C

minimum

-40

typical

+20

maximum

+80

Mountings & Accessories
TO5 - our workhorse
  • availability: 760 nm - 3000 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • cap: AR coated cap (optional)
  • window: AR coated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost
TO56 - the absolute basic
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: uncoated cap (optional)
  • window: uncoated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost

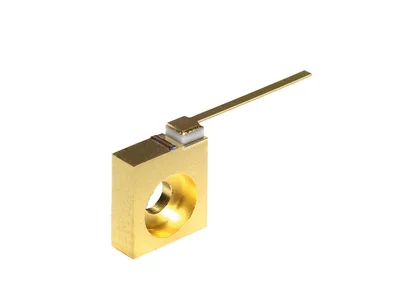

c-mount - basic OEM integration
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: low cost
SM-BTF - our fiber-coupled workhorse
  • availability: 760 nm - 5500 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • plug&play: fiber-coupled beam
  • size: large footprint
  • costs: higher cost than free space
chip on heatspreader - high-end OEM integration
  • availability: 760 nm - 6000 nm
  • TEC: no TEC
  • NTC: integrated NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: smallest footprint
  • costs: low cost
Heatsink for TO5 / TO66
  • availability: 760 nm - 6500 nm
  • NTC: integrated (optional)
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: none
Heatsink for TO5 with collimation
  • availability: 760 nm - 1850 nm
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: collimation with up to 40 % power loss
Lens on cap
  • availability: 1850 nm - 5500 nm
  • heat distribution: none, use separate heatsink
  • connectors: TO66 connectors only
  • posts: none, use separate heatsink
  • cage system: none, use separate heatsink
  • collimation: high-end collimation, divergence < 4 mrad

Optical properties

nanoplus Fabry-Pérot lasers show outstanding spectral and electrical properties.

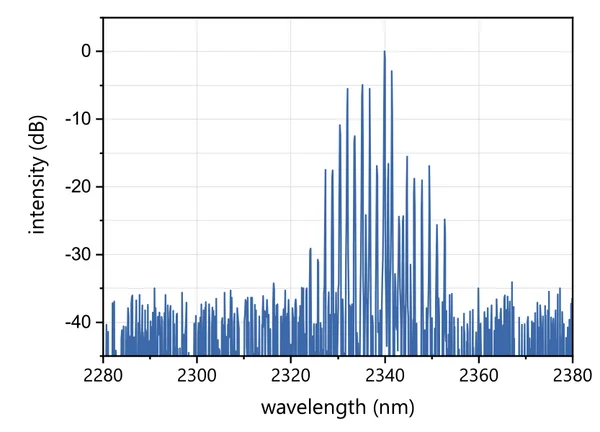

Spectrum 2330 nm FP

Typical spectrum of a nanoplus 2330 nm Fabry-Pérot laser diode

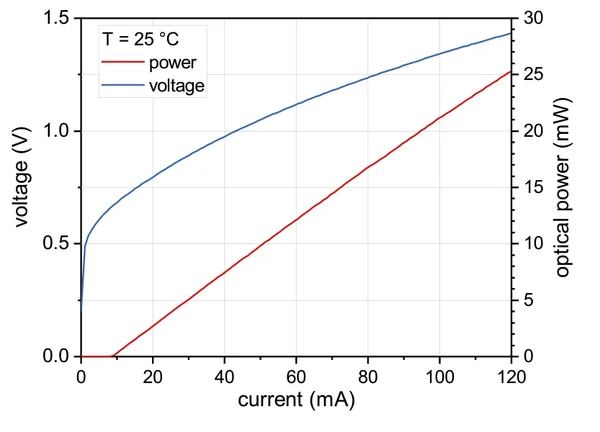

PI Curve 2330 nm FP

Typical power, current and voltage characteristics of a nanoplus 2330 nm Fabry-Pérot laser diode

Learn more

Product Brief

More information

nanoplus uses a unique and patented technology for Fabry-Pérot laser manufacturing. We follow a ridge waveguide approach, which is independent of the material system.
