1950 nm - 2350 nm High-Power Fabry-Pérot Laser

Discover Our Wavelengths

Fabry-Pérot Laser

1950 nm - 2350 nm High-Power Fabry-Pérot Laser

nanoplus offers a high-power option for Fabry-Pérot lasers from 1950 nm to 2350 nm. Further wavelengths are available on request.
Specifications
Mountings & Accessories
Specifications
parameters
symbol
unit
minimum
typical
maximum
parameters
operating wavelength (at Top, Iop)
symbol
λop
unit
nm
minimum
-20
typical
specify
maximum
+20
parameters
optical output power (at λop)
symbol
Pop
unit
mW
minimum
typical
1000
maximum
parameters
operating current
symbol
Iop
unit
mA
minimum
typical
5000
maximum
parameters
operating voltage
symbol
Vop
unit
V
minimum
typical
2.5
maximum
parameters
threshold current
symbol
Ith
unit
mA
minimum
typical
300
maximum
parameters
operating chip temperature
symbol
Top
unit
°C
minimum
+15
typical
+20
maximum
+40
parameters
storage temperature (non-condensing)
symbol
TS
unit
°C
minimum
-40
typical
+20
maximum
+80
Download data sheet
Mountings & Accessories
HPFP submount - our high-power package for Fabry-Pérots
Download data sheet
  • availability: 1950 nm - 2350 nm
  • TEC: no
  • NTC: no
  • plug&play: collimation required
  • size: AlN carrier

Optical properties

nanoplus Fabry-Pérot lasers show outstanding spectral and electrical properties.

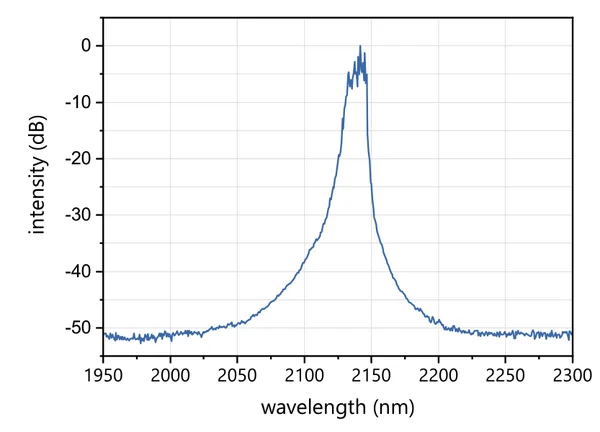

Spectrum 2145 nm HPFP

Typical spectrum of a nanoplus high-power 2145 nm Fabry-Pérot laser diode

PI Curve 2145 nm HPFP

Typical power, current and voltage characteristics of a nanoplus high-power 2145 nm Fabry-Pérot laser diode

Learn more

Product Brief

More information
nanoplus uses a unique and patented technology for Fabry-Pérot laser manufacturing. We follow a ridge waveguide approach, which is independent of the material system.
