5300 nm - 6500 nm Mid-Infrared LED

nanoplus offers mid-infrared LEDs (MIR LED or ICLED) at any wavelength between 5300 nm and 6500 nm.

Specifications
Mountings & Accessories
Papers & Links
Specifications
parameters
symbol
unit
minimum
typical
maximum
parameters

operating wavelength (at Top, Iop) (~ 20 nm peak-change per 10°C temperature-change)

symbol

λop

unit

nm

minimum
typical

Please specify to 100 nm

maximum
parameters

operating current

symbol

Iop

unit

mA

minimum

150

typical

200

maximum
parameters

operating voltage

symbol

Vop

unit

V

minimum
typical

4

maximum
parameters

spectral bandwidth (FWHM)

symbol

Δ λ

unit

nm

minimum
typical

1.500

maximum
parameters

optical cw output power (at λop) (power dissipation 1W [heatsink required])

symbol

Pop

unit

mW

minimum

1

typical

1.5

maximum
parameters

operating case temperature (non-condensing)

symbol

TC

unit

°C

minimum

-10

typical
maximum

+50

parameters

storage temperature (non-condensing)

symbol

TS

unit

°C

minimum

-10

typical
maximum

+70

Mountings & Accessories
ceramic submount for MIR LEDs
ceramic submount for MIR LEDs
  • availability: 2000 nm - 6500 nm
  • TEC: no
  • NTC: no
  • plug&play: collimation required
  • size: ceramic submount
printed circuit board for MIR LEDs
printed circuit board for MIR LEDs
  • availability: 2000 nm - 6500 nm
  • TEC: no
  • NTC: no
  • plug&play: collimation required

Optical properties

nanoplus mid-infrared LEDs show outstanding spectral and electrical properties.

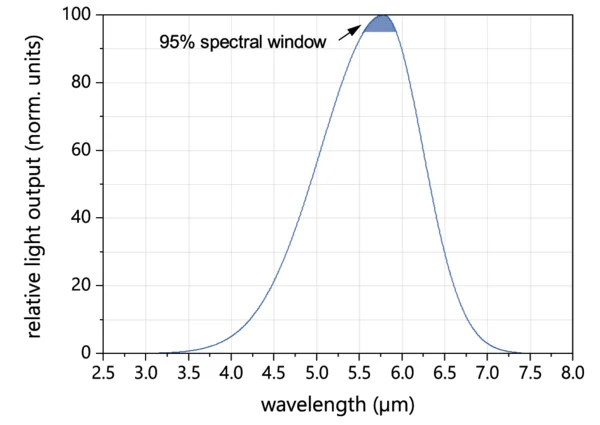

Spectrum 5.7 µm MIR LED

Typical spectrum of a nanoplus 5.7 µm mid-infrared LED

PI Curve 5.7 µm MIR LED

Typical power, current and voltage characteristics of a nanoplus 5.7 µm mid-infrared LED

Learn more

Product Brief

More information

nanoplus MIR LEDs rely on the same technology as our very successful interband cascade lasers.The advantage over previous interband cascade LEDs can be attributed to stage grouping at one single antinode of the optical field and the usage of low absorbing substrates. For more insights into our technology please refer to our paper "High efficiency mid-infrared interband cascade LEDs grown on low absorbing substrates emitting >5 mW of output power" in the paper section.
