1850 nm - 2200 nm Distributed Feedback Laser

Select your target wavelength at any wavelength between 1850 nm and 2200 nm. The table below presents typical specifications, available mountings as well as application references & further reading.

Specifications

Mountings & Accessories

Applications

Papers & Links

Specifications

parameters	symbol	unit	minimum	typical	maximum
parameters operating wavelength (at T_op, I_op)	symbol λop	unit nm	minimum	typical 0.1 nm	maximum
parameters optical output power (at λ_op)	symbol P_op	unit mW	minimum	typical 3	maximum
parameters operating current	symbol I_op	unit mA	minimum	typical 100	maximum
parameters operating voltage	symbol V_op	unit V	minimum	typical 2	maximum
parameters threshold current	symbol I_th	unit mA	minimum 5	typical 25	maximum 65
parameters side mode suppression ratio	symbol SMSR	unit dB	minimum	typical > 35	maximum
parameters current tuning coefficient	symbol C_I	unit nm / mA	minimum 0.01	typical 0.02	maximum 0.05
parameters temperature tuning coefficient	symbol C_T	unit nm / K	minimum 0.16	typical 0.20	maximum 0.23
parameters operating chip temperature	symbol T_op	unit °C	minimum +20	typical +25	maximum +50
parameters operating case temperature (non-condensing)	symbol T_C	unit °C	minimum -20	typical +25	maximum +50
parameters storage temperature (non-condensing)	symbol T_S	unit °C	minimum -40	typical +20	maximum +80

Download data sheet

Mountings & Accessories

TO56 - the absolute basic

Download data sheet

availability: 760 nm - 3000 nm
TEC: no TEC
NTC: no NTC
cap: uncoated cap (optional)

window: uncoated window (optional)
plug&play: collimation required
size: small footprint
costs: low cost

TO5 - our workhorse

Download data sheet

availability: 760 nm - 3000 nm
TEC: integrated TEC
NTC: integrated NTC
cap: AR coated cap (optional)

window: AR coated window (optional)
plug&play: collimation required
size: small footprint
costs: low cost

c-mount - basic OEM integration

Download data sheet

availability: 760 nm - 3000 nm
TEC: no TEC
NTC: no NTC
cap: NA

window: NA
plug&play: collimation required
size: low cost

SM-BTF - our fiber-coupled workhorse

Download data sheet

availability: 760 nm - 5500 nm
TEC: integrated TEC
NTC: integrated NTC

plug&play: fiber-coupled beam
size: large footprint
costs: higher cost than free space

PM-BTF - high-end fiber coupling

Download data sheet

availability: 1064 nm - 2050 nm
TEC: integrated TEC
NTC: integrated NTC

plug&play: fiber-coupled beam
size: large footprint
costs: higher costs than free space

chip on heatspreader - high-end OEM integration

Download data sheet

availability: 760 nm - 6000 nm
TEC: no TEC
NTC: integrated NTC
cap: NA

window: NA
plug&play: collimation required
size: smallest footprint
costs: low cost

Heatsink for TO5 / TO66

Download data sheet

availability: 760 nm - 6500 nm
NTC: integrated (optional)
heat distribution: warranted
connectors: for laser diode driver & temperature controller
posts: M6 thread for optical table

cage system: standard
collimation: none

Heatsink for TO5 with collimation

Download data sheet

availability: 760 nm - 1850 nm
heat distribution: warranted
connectors: for laser diode driver & temperature controller
posts: M6 thread for optical table

cage system: standard
collimation: collimation with up to 40 % power loss

Lens on cap

Download data sheet

availability: 1850 nm - 5500 nm
heat distribution: none, use separate heatsink
connectors: TO66 connectors only
posts: none, use separate heatsink

cage system: none, use separate heatsink
collimation: high-end collimation, divergence < 4 mrad

Applications

Gas Detection

1850 nm - 2200 nm

Water vapour shows absorption features in the wavelength window between 1850 nm and 1900 nm.

Papers & Links

# 9 DFB Lasers Between 760 nm and 16 µm for Sensing Applications

W. Zeller, L. Naehle, P. Fuchs, F. Gerschuetz, L. Hildebrandt, J. Koeth , Sensors, 10, 2010, pp. 2492-2510,

# 14 Evaluation of the Radiation Hardness of GaSbbased Laser Diodes for Space Applications;

I. Esquivias, J.M.G. Tijero, J. Barbero, D. Lopez, M. Fischer, K. Roessner, J. Koeth, RADECS Proceedings, 2011, pp. 349-352,

# 33 DFB laser diodes in the wavelength range from 760 nm to 2.5 µm

J. Seufert, M. Fischer, M. Legge, J. Koeth, R. Werner, M. Kamp, A. Forchel, Spectroch. Acta, Part A 60, 2004, pp. 3243-3247.,

# 39 The nulltimate test bench: achromatic phase shifters for nulling interferometry

P.A. Schuller, O. Demangeon, A. Leger, M. Barillot, B. Chazelas, M. Decaudin, M. Derrien, P. Duret, P. Gabor, G. Gadret, J. Gay, A. Labeque, R. Launhardt, J. Mangin, Y. Rabbia, Z. Sodnikal , Proc. SPIE , 2010, 7734, 77342E.,

# 41 All-fiber, wavelength and repetition-rate tunable, ultrafast pulse generation in the 2.0 μm region without mode-locking

M. E. Durst and J. van Howe, Journal of lightwave technology,, Vol. 31, No. 23, 1th December 2013, pp. 3714-3718.,

# 55 Photonic Crystal Laser Based Gas Sensor

M. Wolff, H. Bruhns, J. Koeth, W. Zeller, L. Naehle, Optical Sensors - New Developments and Practical Applications, 19th March 2014, Chapter 4,

# 72 TDLAS-based NH₃ mole fraction measurement for exhaust diagnostics during selective catalytic reduction using a fiber-coupled 2.2-µm DFB Diode laser

F. Stritzke, O. Diemel, S. Wagner , App. Phys. B, 119, 2015, pp. 143-152.,

# 88 Oxygen-18 isotope of breath CO₂ linking to erythrocytes carbonic anhydrase activity: a biomarker for pre-diabetes and type 2 diabetes

C. Ghosh, G. D. Banik, A. Maity, S. Som, A. Chakraborty, C. Selvan, S. Ghosh, S. Chowdhury, M. Pradhan , Scientific Reports, 2015, 5 : 8137.,

# 139 Development of a Method for Non‐Invasive Measurement of Absolute Pressure in Partially Transparent Containers with Carbonated Beverages

M. Grafen, M. Falkenstein, A. Ostendorf, C. Esen, Chemie, Ingenieur, Technik, Vol. 92, Iss. 11, Spec. Iss.: Bioraffinerien, 2020, pp 1830 - 1839.,

# 147 Hydrogen sensor based on tunable diode laser absorption spectroscopy

V. Avetisov, O. Bjoroey, J. Wang, P. Geiser, K. G. Paulsen, Sensors, Vol.19, Iss.23, 2019, 5313.,

Optical properties

nanoplus distributed feedback lasers show outstanding spectral, tuning and electrical properties.

Spectrum 1877 nm DFB

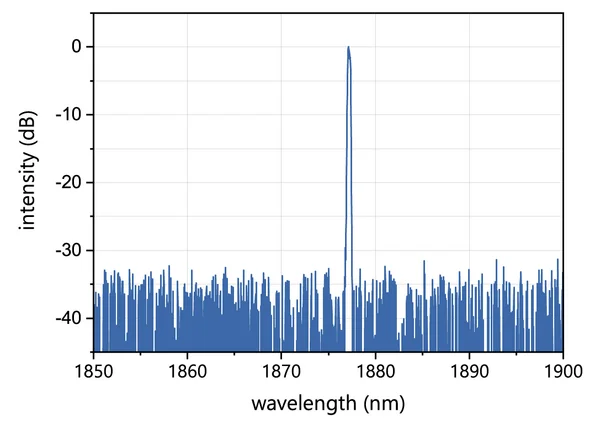

Typical spectrum of a nanoplus 1877 nm distributed feedback laser diode

Tuning 1877 nm DFB

Typical mode hop free tuning of a nanoplus 1877 nm distributed feedback laser diode

PI Curve 1877 nm DFB

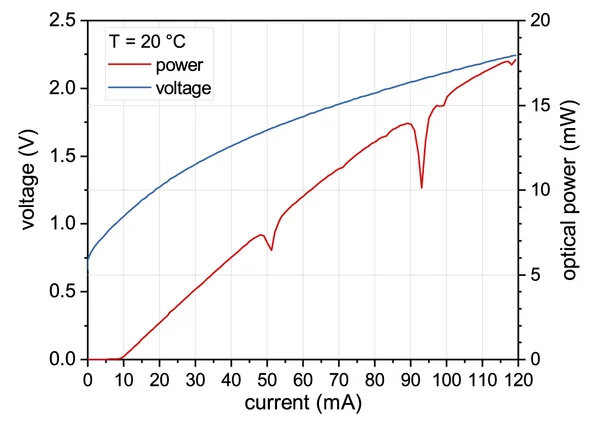

Typical power, current and voltage characteristics of a nanoplus 1877 nm distributed feedback laser diode

Learn more

Product Brief

More information

nanoplus uses a unique and patented technology for DFB laser manufacturing. We apply a lateral metal grating along the ridge waveguide, which is independent of the material system. Read more about our patented distributed feedback technology.
