4565 nm Distributed Feedback Laser (TOP Wavelength)

References

nanoplus Nanosystems and Technologies GmbH Products DFB Laser HP 4565 nm

Discover Our Wavelengths

Distributed Feedback Laser

High-Power 4565 nm
TOP Wavelength

High-power DFB interband cascade lasers at 4565 nm are used for nitrogen oxide and carbon monoxide detection.

Please have a look at the key features, specifications and applications.

Specifications

Mountings & Accessories

Applications

Papers & Links

Specifications

parameters	symbol	unit	minimum	typical	maximum
parameters operating wavelength (at T_op, I_op)	symbol λop	unit nm	minimum	typical 4565	maximum
parameters optical output power (at λ_op)	symbol P_op	unit mW	minimum	typical 15	maximum
parameters operating current	symbol I_op	unit mA	minimum	typical	maximum 120
parameters operating voltage	symbol V_op	unit V	minimum	typical 5	maximum
parameters threshold current	symbol I_th	unit mA	minimum 20	typical 30	maximum 40
parameters side mode suppression ratio	symbol SMSR	unit dB	minimum	typical > 35	maximum
parameters current tuning coefficient	symbol C_I	unit nm / mA	minimum	typical 0.12	maximum
parameters temperature tuning coefficient	symbol C_T	unit nm / K	minimum	typical 0.45	maximum
parameters operating chip temperature	symbol T_op	unit °C	minimum +15	typical +20	maximum +40
parameters operating case temperature (non-condensing)	symbol T_C	unit °C	minimum -20	typical +25	maximum +55
parameters storage temperature (non-condensing)	symbol T_S	unit °C	minimum -30	typical +20	maximum +70

Download data sheet

Mountings & Accessories

SM-BTF - our fiber-coupled workhorse

Download data sheet

availability: 760 nm - 5500 nm
TEC: integrated TEC
NTC: integrated NTC

plug&play: fiber-coupled beam
size: large footprint
costs: higher cost than free space

TO66 - our workhorse for ICLs

Download data sheet

availability: 2800 nm - 6500 nm
TEC: integrated large TEC
NTC: integrated NTC
cap: AR coated cap (optional)

window: AR coated window (optional)
plug&play: collimation required
size: small footprint
costs: low cost

chip on heatspreader - high-end OEM integration

Download data sheet

availability: 760 nm - 6000 nm
TEC: no TEC
NTC: integrated NTC
cap: NA

window: NA
plug&play: collimation required
size: smallest footprint
costs: low cost

Heatsink for TO5 / TO66

Download data sheet

availability: 760 nm - 6500 nm
NTC: integrated (optional)
heat distribution: warranted
connectors: for laser diode driver & temperature controller
posts: M6 thread for optical table

cage system: standard
collimation: none

Lens on cap

Download data sheet

availability: 1850 nm - 6500 nm
heat distribution: none, use separate heatsink
connectors: TO66 connectors only
posts: none, use separate heatsink

cage system: none, use separate heatsink
collimation: high-end collimation, divergence < 4 mrad

Applications

CO₂ & NOx

Emission control of exhaust fumes: CO₂ and NOx

Guided by environmental policies, the automobile industry is concerned to reduce the carbon footprint of vehicles. Automotive suppliers develop innovative combustion engines to control CO₂ and NO_x concentration in exhaust fumes.

[ 115 ]

NOx

Monitoring of breath gas: NOx

The field of breath analysis considers NO_X as a biomarker for asthma and other pulmonary diseases. This new technology becomes more established for clinical applications. It is a cost-effective and non-invasive method of diagnosis and treatment monitoring.

[ 116 , 49 ]

NOx

Emission control of flue gases: NOx

NO_x is produced during fuel combustion at power plants and other industrial facilities. When it reacts with SO₂ it causes acid rain. For this reason NO_x and SO₂ emissions are restricted and need to be monitored.

[ 67 ]

Papers & Links

# 9 DFB Lasers Between 760 nm and 16 µm for Sensing Applications

W. Zeller, L. Naehle, P. Fuchs, F. Gerschuetz, L. Hildebrandt, J. Koeth , Sensors, 10, 2010, pp. 2492-2510,

# 11 Quantum cascade laser linewidth investigations for high resolution photoacoustic spectroscopy

M. Germer, M. Wolff , Appl. Opt., 48, 4, 2009, pp. B80-B86.,

# 18 Monomode Interband Cascade Lasers at 5.2 µm for Nitric Oxide Sensing

M. von Edlinger, J. Scheuermann, R. Weih, C. Zimmermann, L. Naehle, M. Fischer, J. Koeth , IEEE Phot. Tech. Lett, 26, 5, 2014, pp. 480-482.,

# 31 QCL based NO Detection

M. Wolff, J. Koeth, L. Hildebrandt, P. Fuchs; 16th International Conference on Photoacoustic and Photothermal Phenomena.,

# 49 Spectroscopic monitoring of NO traces in plants and human breath: applications and perspectives

S. M. Cristescu, D. Marchenko, J. Mandon, K. Hebelstrup, G. W. Griffith, L. A. J. Mur, F. J. M. Harren, Appl. Phys. B,, 109, 3, November 2012, pp. 203-211.,

# 50 Mid-IR difference frequency laser-based sensors for ambient CH₄, CO, and N₂O monitoring;

J. J. Scherer, J. B. Paul, H. J. Jost, Marc L. Fischer, Appl. Phys. B, 109, 3, November 2017, pp. 271-277.,

# 63 Breath Analysis Using Laser Spectroscopic Techniques: Breath Biomarkers, Spectral Fingerprints, and Detection Limits

C. Wang and P. Sahay, Sensors, 9, 2009, 8230 - 8262,

# 64 Interband Cascade Lasers - Topical Review

I. Vurgaftman, R. Weih, M. Kamp, C.L. Canedy, C.S. Kim, M. Kim, W.W. Bewley, C.D. Merritt, J. Abell, S. Hoefling, Phys. D: Appl. Phys., 48, 2015, pp. 123001-12017.,

# 117 The driver design for N₂O gas detection system based on tunable interband cascade laser

L. Liao, J. Zhang, D. Dong, E3S Web Conf., Vol.78, 2019, 03002.,

# 131 Unveiling quantum-limited operation of interband cascade lasers

S. Borri , M. Siciliani de Cumis , S. Viciani , F. D’Amato, P. De Natale, APL Phot., Vol.5, Iss.3, 2020, 036101,

# 151 The interband cascade laser

J. R. Meyer, W. Bewley, C. L. Canedy, C. S. Kim, M. Kim, C. D. Merritt, I. Vurgaftman, Photonics, Vol. 7, No. 3 (75), 2020,

# 178 Quartz-Enhanced Photoacoustic Sensors for Detection of Eight Air Pollutants

R. De Palo, A. Elefante, G. Biagi, F. Paciolla, R. Weih, V. Villada, A. Zifarelli, M. Giglio, A. Sampaolo, V. Spagnolo, P. Patimisco, Adv. Phot. Res., Vo. 4, Iss. 6, 2023,

Optical properties

nanoplus distributed feedback lasers show outstanding spectral, tuning and electrical properties.

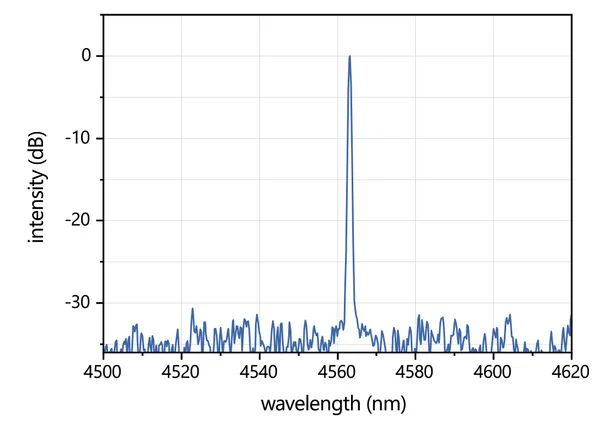

Spectrum 4565 nm DFB high-power

Typical spectrum of a nanoplus high-power 4565 nm distributed feedback interband cascade laser

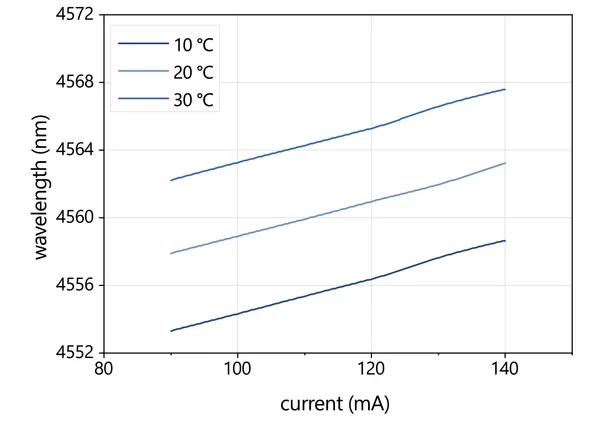

Tuning 4565 nm DFB high-power

Typical mode hop free tuning of a nanoplus high-power 4565 nm distributed feedback interband cascade laser

PI Curve 4565 nm DFB high-power

Typical power, current and voltage characteristics of a nanoplus high-power 4565 nm distributed feedback interband cascade laser

Learn more

Product Brief

More information

nanoplus uses a unique and patented technology for DFB laser manufacturing. We apply a lateral metal grating along the ridge waveguide, which is independent of the material system. Read more about our patented distributed feedback technology.
