840 nm - 1100 nm Fabry-Pérot Laser

Discover Our Wavelengths

Fabry-Pérot Laser

840 nm - 1100 nm Fabry-Pérot Laser

nanoplus offers FP laser diodes at any wavelength between 840 nm and 1100 nm.

Specifications
Mountings & Accessories
Specifications
parameters
symbol
unit
minimum
typical
maximum
parameters

operating wavelength (at Top, Iop)
symbol

λop
unit

nm
minimum

-20
typical

specify
maximum

+20
parameters

optical output power (at λop)
symbol

Pop
unit

mW
minimum
typical

35
maximum
parameters

operating current
symbol

Iop
unit

mA
minimum
typical

70
maximum
parameters

operating voltage
symbol

Vop
unit

V
minimum
typical

3
maximum
parameters

threshold current
symbol

Ith
unit

mA
minimum
typical

50
maximum
parameters

operating chip temperature
symbol

Top
unit

°C
minimum

+20
typical

+25
maximum

+50
parameters

operating case temperature (non-condensing)
symbol

TC
unit

°C
minimum

-20
typical

+25
maximum

+50
parameters

storage temperature (non-condensing)
symbol

TS
unit

°C
minimum

-40
typical

+20
maximum

+80

Download data sheet
Mountings & Accessories
TO5 - our workhorse

Download data sheet
  • availability: 760 nm - 3000 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • cap: AR coated cap (optional)
  • window: AR coated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost
TO56 - the absolute basic

Download data sheet
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: uncoated cap (optional)
  • window: uncoated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost
c-mount - basic OEM integration

Download data sheet
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: low cost
SM-BTF - our fiber-coupled workhorse

Download data sheet
  • availability: 760 nm - 5500 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • plug&play: fiber-coupled beam
  • size: large footprint
  • costs: higher cost than free space
chip on heatspreader - high-end OEM integration

Download data sheet
  • availability: 760 nm - 6000 nm
  • TEC: no TEC
  • NTC: integrated NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: smallest footprint
  • costs: low cost
Heatsink for TO5 / TO66

Download data sheet
  • availability: 760 nm - 6500 nm
  • NTC: integrated (optional)
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: none
Heatsink for TO5 with collimation

Download data sheet
  • availability: 760 nm - 1850 nm
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: collimation with up to 40 % power loss

Optical properties

nanoplus Fabry-Pérot lasers show outstanding spectral and electrical properties.

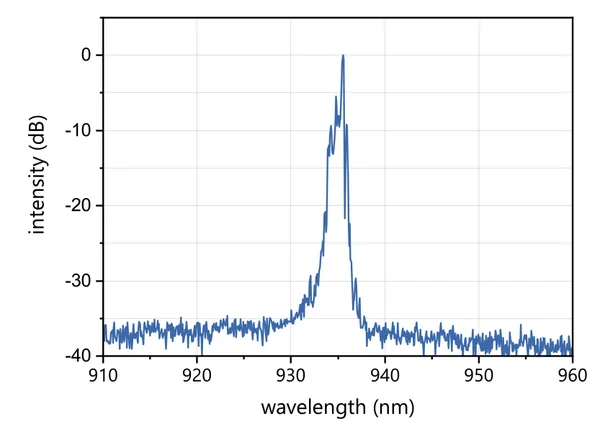

Spectrum 935 nm FP

Typical spectrum of a nanoplus 935 nm Fabry-Pérot laser diode

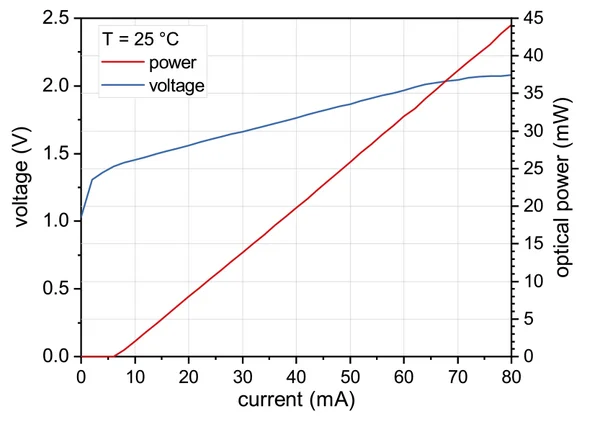

PI Curve 935 nm FP

Typical power, current and voltage characteristics of a nanoplus 935 nm Fabry-Pérot laser diode

Learn more

Product Brief

More information

nanoplus uses a unique and patented technology for Fabry-Pérot laser manufacturing. We follow a ridge waveguide approach, which is independent of the material system.
