1100 nm - 1300 nm Distributed Feedback Laser

Discover Our Wavelengths

Distributed Feedback Laser

Top Wavelength

1278.8 nm

1100 nm - 1300 nm Distributed Feedback Laser

Select your target wavelength at any wavelength between 1100 nm and 1300 nm. The table below presents typical specifications, available mountings as well as application references & further reading.

Specifications
Mountings & Accessories
Applications
Papers & Links
Specifications
parameters
symbol
unit
minimum
typical
maximum
parameters

operating wavelength (at Top, Iop)
symbol

λop
unit

nm
minimum
typical

0.1 nm
maximum
parameters

optical output power (at λop)
symbol

Pop
unit

mW
minimum
typical

20
maximum
parameters

operating current
symbol

Iop
unit

mA
minimum
typical

70
maximum
parameters

operating voltage
symbol

Vop
unit

V
minimum
typical

2
maximum
parameters

threshold current
symbol

Ith
unit

mA
minimum

12
typical

15
maximum

25
parameters

side mode suppression ratio
symbol

SMSR
unit

dB
minimum
typical

> 35
maximum
parameters

current tuning coefficient
symbol

CI
unit

nm / mA
minimum

0.007
typical

0.01
maximum

0.02
parameters

temperature tuning coefficient
symbol

CT
unit

nm / K
minimum

0.07
typical

0.09
maximum

0.1
parameters

operating chip temperature
symbol

Top
unit

°C
minimum

+20
typical

+25
maximum

+50
parameters

operating case temperature (non-condensing)
symbol

TC
unit

°C
minimum

-20
typical

+25
maximum

+50
parameters

storage temperature (non-condensing)
symbol

TS
unit

°C
minimum

-40
typical

+20
maximum

+80

Download data sheet
Mountings & Accessories
TO56 - the absolute basic

Download data sheet
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: uncoated cap (optional)
  • window: uncoated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost
TO5 - our workhorse

Download data sheet
  • availability: 760 nm - 3000 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • cap: AR coated cap (optional)
  • window: AR coated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost
c-mount - basic OEM integration

Download data sheet
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: low cost
SM-BTF - our fiber-coupled workhorse

Download data sheet
  • availability: 760 nm - 5500 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • plug&play: fiber-coupled beam
  • size: large footprint
  • costs: higher cost than free space
PM-BTF - high-end fiber coupling

Download data sheet
  • availability: 1064 nm - 2050 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • plug&play: fiber-coupled beam
  • size: large footprint
  • costs: higher costs than free space
chip on heatspreader - high-end OEM integration

Download data sheet
  • availability: 760 nm - 6000 nm
  • TEC: no TEC
  • NTC: integrated NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: smallest footprint
  • costs: low cost
Heatsink for TO5 / TO66

Download data sheet
  • availability: 760 nm - 6500 nm
  • NTC: integrated (optional)
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: none
Heatsink for TO5 with collimation

Download data sheet
  • availability: 760 nm - 1850 nm
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: collimation with up to 40 % power loss
Applications
Gas Detection
1100 nm - 1300 nm

Lasers in the 1100 nm to 1300 nm window are used for hydrogen fluoride detection and frequency conversion purposes.

Papers & Links

Optical properties

nanoplus distributed feedback lasers show outstanding spectral, tuning and electrical properties.

Spectrum 1279 nm DFB

Typical spectrum of a nanoplus 1279 nm distributed feedback laser diode

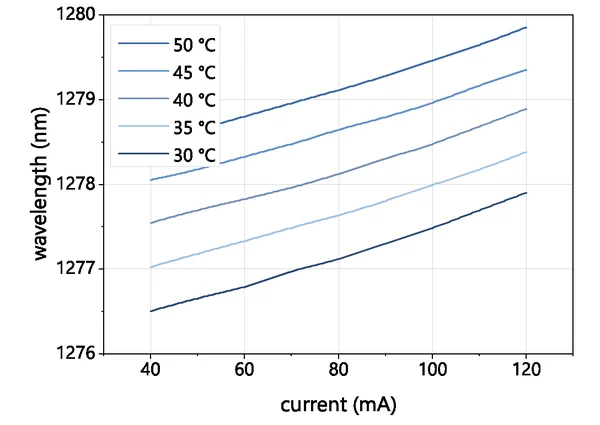

Tuning 1279 nm DFB

Typical mode hop free tuning of a nanoplus 1279 nm distributed feedback laser diode

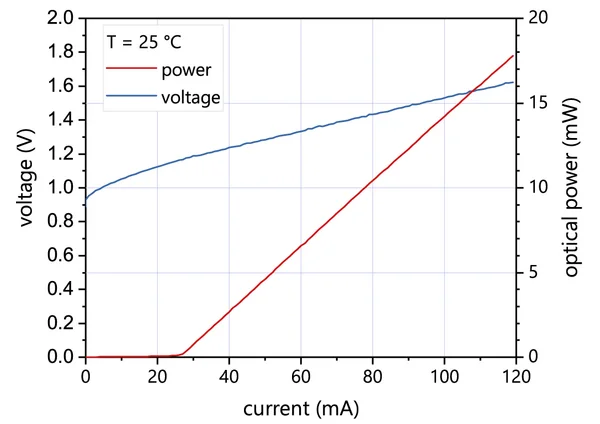

PI Curve 1279 nm DFB

Typical power, current and voltage characteristics of a nanoplus 1279 nm distributed feedback laser diode

Learn more

Product Brief

More information

nanoplus uses a unique and patented technology for DFB laser manufacturing. We apply a lateral metal grating along the ridge waveguide, which is independent of the material system. Read more about our patented distributed feedback technology.
