Packaging Options

New ICL fiber coupling option
Available up to 5500 nm
Find the package that meets your requirements

nanoplus mountings

Free space, fiber-coupled & OEM packages

nanoplus DFB and FP lasers are available in a wide selection of packagings. Choose your package according to your needs. Please click on the package types for detailed information on dimensions and pin assignments. Pros and cons are written below the mounts. Further mounting options are available on request.

Our experts explain

Your selection

Find the package that matches your application

Each application has a different setup and is affected differently by its environment. To guarantee perfect performance of the laser, the package has to respond to the needs of the individual application. In this video Dr. Lars Hildebrandt, Divisional Director Sales & Marketing at nanoplus, explains which impacts you should consider when choosing your laser mount.

Product Brief Packaging Options

Watch a brief introduction into nanoplus packaging options.

Select your package

Key features

Free space, fiber-coupled, OEM & accessories

You can select between various laser mountings. Check your wavelength to find the available mountings. We offer multiple packages with or without TEC, with fiber our free space and optional sealing. OEM customers will find particular packages to simplify installation. Make your choice. Learn more about the specifications of the individual mounting options & check your accessories for easier setup.

Free space
Fiber coupled
OEM
Collimation & Accessories
Free space
TO56 - the absolute basic
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: uncoated cap (optional)
  • window: uncoated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost

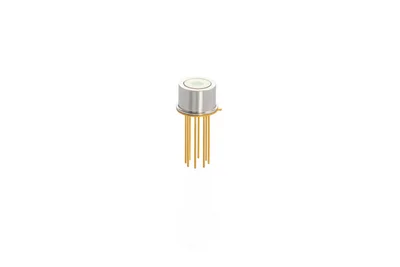

TO5 - our workhorse
  • availability: 760 nm - 3000 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • cap: AR coated cap (optional)
  • window: AR coated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost

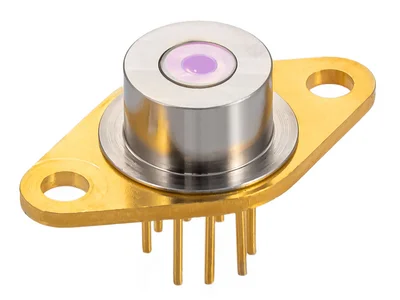

TO66 - our workhorse for ICLs
  • availability: 2800 nm - 6500 nm
  • TEC: integrated large TEC
  • NTC: integrated NTC
  • cap: AR coated cap (optional)
  • window: AR coated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost

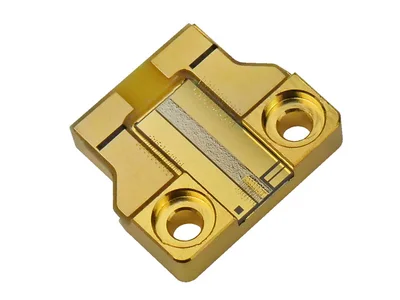

HPFP submount - our high-power package for Fabry-Pérots
  • availability: 1950 nm - 2350 nm
  • TEC: no
  • NTC: no
  • plug&play: collimation required
  • size: AlN carrier

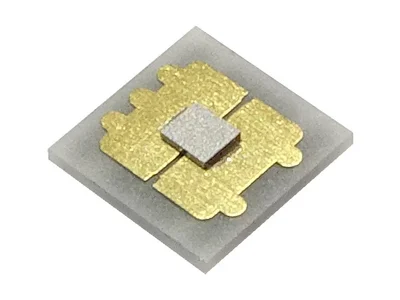

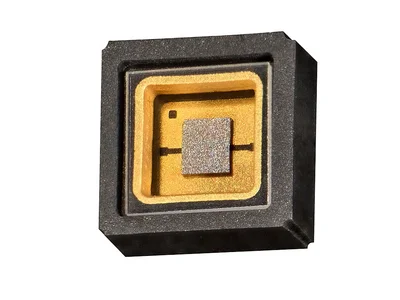

ceramic submount for MIR LEDs
ceramic submount for MIR LEDs
  • availability: 2000 nm - 6500 nm
  • TEC: no
  • NTC: no
  • plug&play: collimation required
  • size: ceramic submount

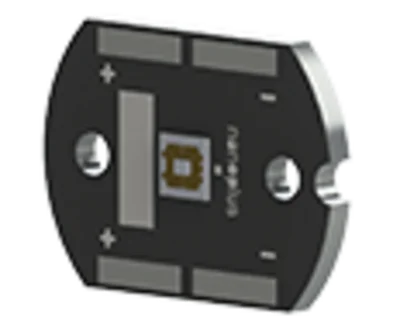

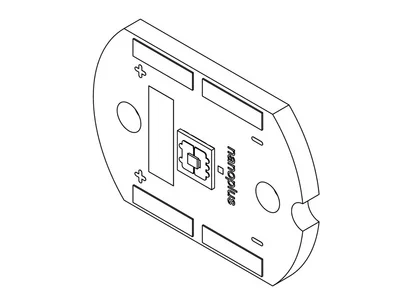

printed circuit board for MIR LEDs
printed circuit board for MIR LEDs
  • availability: 2000 nm - 6500 nm
  • TEC: no
  • NTC: no
  • plug&play: collimation required
Fiber coupled

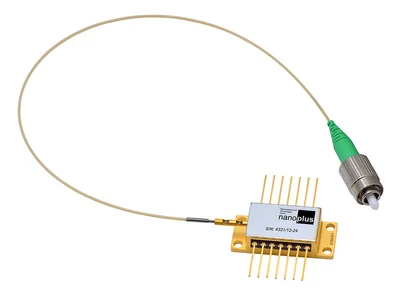

SM-BTF - our fiber-coupled workhorse
  • availability: 760 nm - 5500 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • plug&play: fiber-coupled beam
  • size: large footprint
  • costs: higher cost than free space

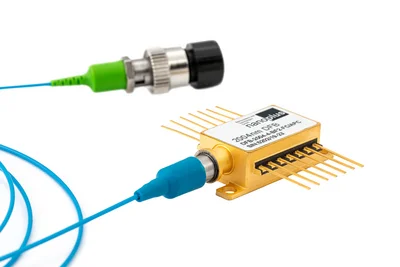

PM-BTF - high-end fiber coupling
  • availability: 1064 nm - 2050 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • plug&play: fiber-coupled beam
  • size: large footprint
  • costs: higher costs than free space
OEM

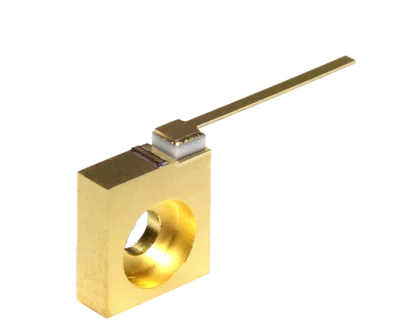

c-mount - basic OEM integration
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: low cost

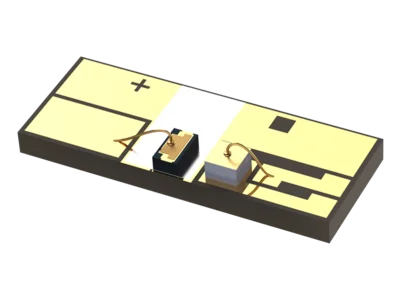

chip on heatspreader - high-end OEM integration
  • availability: 760 nm - 6000 nm
  • TEC: no TEC
  • NTC: integrated NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: smallest footprint
  • costs: low cost
Collimation & Accessories

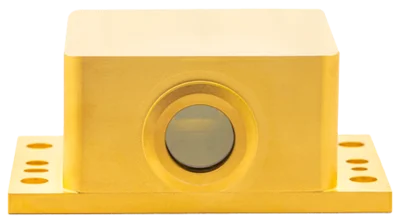

HHL - our QCL package
High-heatload package (incl. collimation)
  • availability: 6000 nm - 14000 nm
  • TEC: integrated
  • NTC: integrated
  • window: yes
  • plug&play: yes
  • collimation: with lens, collimated beam (<7mrad)

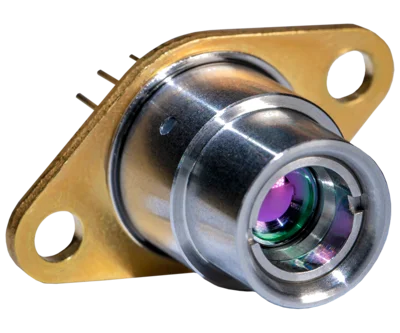

Lens on cap
  • availability: 1850 nm - 5500 nm
  • heat distribution: none, use separate heatsink
  • connectors: TO66 connectors only
  • posts: none, use separate heatsink
  • cage system: none, use separate heatsink
  • collimation: high-end collimation, divergence < 4 mrad

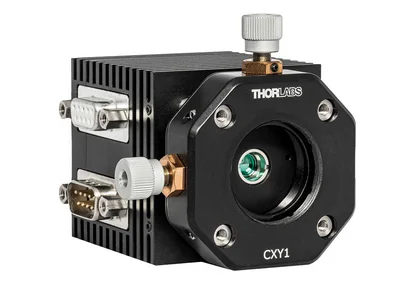

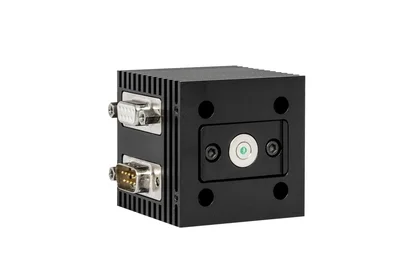

Heatsink for TO5 / TO66
  • availability: 760 nm - 6500 nm
  • NTC: integrated (optional)
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: none

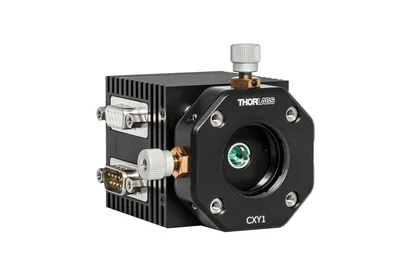

Heatsink for TO5 with collimation
  • availability: 760 nm - 1850 nm
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: collimation with up to 40 % power loss
Sockets
  • availability: sockets for TO56, TO5, and TO66 mounts are available with Andon Electronics

3D STP-model data

We are pleased to offer 3D STP-model data for a range of laser packages upon request. Please contact our sales team for further information.
