6000 nm - 14000 nm DFB Quantum Cascade Laser (pulsed)

Discover Our Wavelengths

Distributed Feedback Laser

6000 nm - 14000 nm DFB Quantum Cascade Laser (pulsed)

Select your target wavelength at any wavelength between 6000 nm and 14000 nm.

Specifications
Mountings & Accessories
Specifications
parameters
symbol
unit
minimum
typical
maximum
parameters

operating wavelength (at Top, Iop)
symbol

λop
unit

nm
minimum
typical

0.1
maximum
parameters

optical output power (at λop)
symbol

Pop
unit

mW
minimum
typical

200
maximum
parameters

operating current
symbol

Iop
unit

mA
minimum
typical

2000
maximum

5000
parameters

operating voltage
symbol

Vop
unit

V
minimum
typical

15
maximum

20
parameters

threshold current
symbol

Ith
unit

mA
minimum
typical

1500
maximum
parameters

side mode suppression ratio
symbol

SMSR
unit

dB
minimum
typical

35
maximum
parameters

current tuning coefficient
symbol

CI
unit

nm / mA
minimum

0
typical
maximum

0.15
parameters

temperature tuning coefficient
symbol

CT
unit

nm / K
minimum
typical

0.7
maximum
parameters

operating case temperature (non-condensing)
symbol

TC
unit

°C
minimum

10
typical

20
maximum

30
parameters

storage temperature (non-condensing)
symbol

TS
unit

°C
minimum

0
typical

20
maximum

50

Download data sheet
Mountings & Accessories
HHL - our QCL package
High-heatload package (incl. collimation)

Download data sheet
  • availability: 6000 nm - 14000 nm
  • TEC: integrated
  • NTC: integrated
  • window: yes
  • plug&play: yes
  • collimation: with lens, collimated beam (<7mrad)

Optical properties

Optical properties

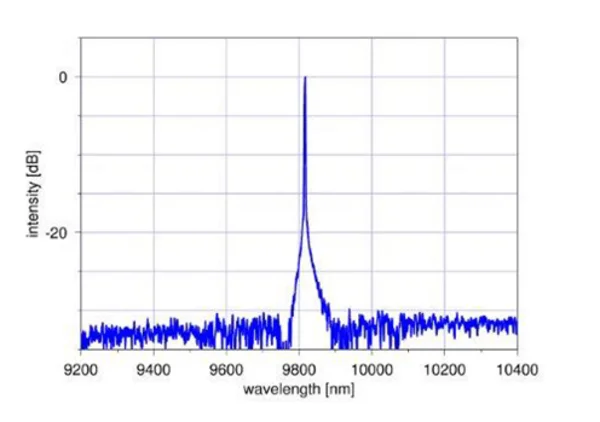

Spectrum 9800 nm DFB QCL

Typical spectrum of a nanoplus 9800 nm distributed feedback quantum cascade laser (DFB QCL) in pulsed operation

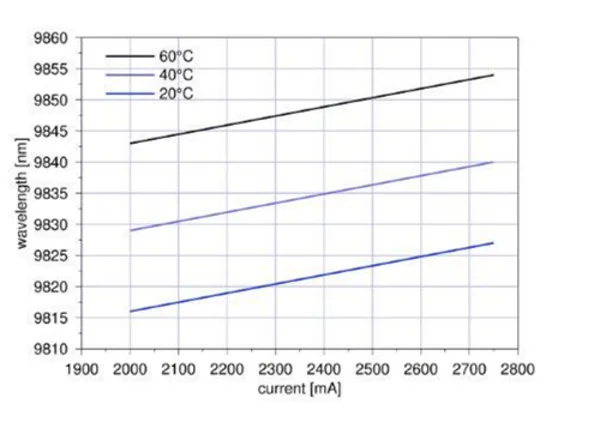

Tuning 9800 nm DFB QCL

Typical mode hop free tuning of a nanoplus 9800 nm distributed feedback quantum cascade laser (DFB QCL) in pulsed operation

Learn more

Product Brief

More information

nanoplus uses a unique and patented technology for DFB laser manufacturing. We apply a lateral metal grating along the ridge waveguide, which is independent of the material system. Read more about our patented distributed feedback technology.
