Mid-Infrared LED

Discover our technology

Key features & Technology

Key features
  • low power consumption
  • cw operation
  • broadband
  • incoherent
nanoplus Mid-Infrared LED
nanoplus introduces continuous-wave MIR LEDs (also known as ICLEDs) at customized wavelengths. Select any wavelength between 2800 nm and 6500 nm. The substrate-side-emitting devices display higher wall-plug efficiencies and maximum output powers > 1mW than previous MIR LEDs operating in continuous wave at room temperature. Operation in pulsed mode is, as well, possible, for low power consumption. nanoplus MIR LEDs are broadband, incoherent and cost-effective alternatives to lasers for many gas sensing applications in industry and research.

Technology

nanoplus MIR LEDs rely on the same technology as our very successful interband cascade lasers.The advantage over previous interband cascade LEDs can be attributed to stage grouping at one single antinode of the optical field and the usage of low absorbing substrates. For more insights into our technology please refer to our paper "High efficiency mid-infrared interband cascade LEDs grown on low absorbing substrates emitting >5 mW of output power" in the paper section.

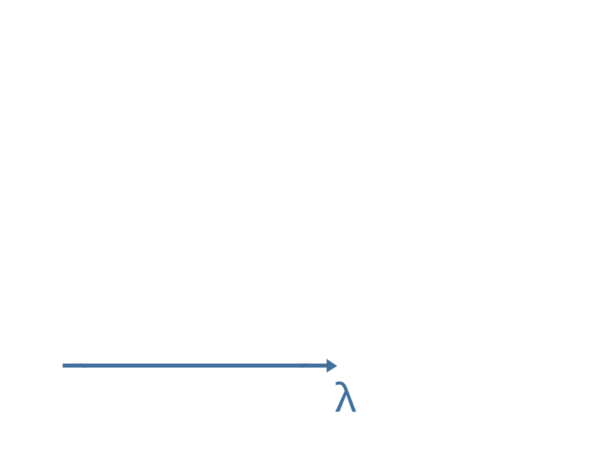

Schematic MIR LED

Schematic of nanoplus Mid-Infrared LED with spectrum

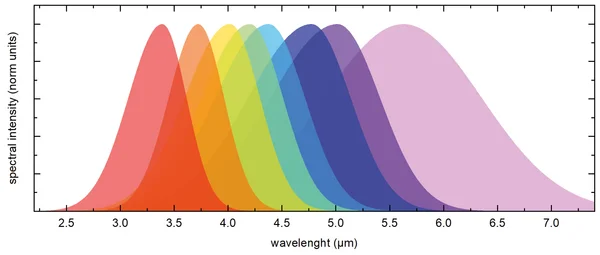

nanoplus MIR wavelength coverage

nanoplus Mid-Infrared LEDs are available in the entire spectral range from 2800 nm to 6500 nm. The diagram shows the spectral intensity of nanoplus MIR LEDs at various target wavelengths.

Discover Our Wavelength

Your MIR LED

Select your MIR LED at any wavelength from 2800 nm to 6500 nm
Top Wavelength
Request for quotation

Your Requirement

  • Select your MIR LED at any wavelength between 2800 nm and 6500 nm.
  • Define your wavelength with +/- 100 nm precision.
  • Check the typical specifications by choosing the matching wavelength class below.
Request for quotation

Send your message

Learn more

Product Brief

Product Brief Mid-Infrared LED

Watch a brief introduction into nanoplus Mid-Infrared LEDs.

EPIC Members New Product Release

Dr. Lars Hildebrandt, Divisional Director Sales and Marketing, introduces new nanoplus Mid-Infrared LEDs.

Get in touch

Do not change your ideas. Let us deliver the mid-infrared LED that fits your application.
