Mid-Infrared LEDs 5200 nm

References

nanoplus Nanosystems and Technologies GmbH Products MIR LED 5200 nm

Discover Our Wavelengths

Your MIR LED

5200 nm Top Wavelength

nanoplus offers mid-infrared LEDs (MIR LED or ICLED) at any wavelength around 5200 nm.

Specifications

Mountings & Accessories

Papers & Links

Specifications

parameters	symbol	unit	minimum	typical	maximum
parameters operating wavelength (at T_op, I_op) (~ 20 nm peak-change per 10°C temperature-change)	symbol λop	unit nm	minimum	typical Please specify to 100 nm	maximum
parameters operating current	symbol I_op	unit mA	minimum 150	typical 200	maximum
parameters operating voltage	symbol V_op	unit V	minimum	typical 3.3	maximum
parameters spectral bandwidth (FWHM)	symbol Δ λ	unit nm	minimum	typical 1.200	maximum
parameters optical cw output power (at λ_op) (power dissipation 1W [heatsink required])	symbol P_op	unit mW	minimum 0.6	typical 0.8	maximum
parameters operating case temperature (non-condensing)	symbol T_C	unit °C	minimum -10	typical	maximum +50
parameters storage temperature (non-condensing)	symbol T_S	unit °C	minimum -10	typical	maximum +70

Download data sheet

Mountings & Accessories

ceramic submount for MIR LEDs

availability: 2000 nm - 6500 nm
TEC: no
NTC: no

plug&play: collimation required
size: ceramic submount

printed circuit board for MIR LEDs

availability: 2000 nm - 6500 nm
TEC: no
NTC: no

plug&play: collimation required

Papers & Links

# 138 High efficiency mid-infrared interband cascade LEDs grown on low absorbing substrates emitting >5 mW of output power

N. Schäfer, J. Scheuermann, R. Weih, J. Koeth, S. Höfling, Opt. Eng., 58(11), 2019, 117106.,

# 191 Wavelength Tuning in Resonant Cavity Interband Cascade Light Emitting Diodes (RCICLEDs) via Post Growth Cavity Length Adjustment

N. Schäfer, R. Weih, J. Scheuermann, F. Rothmayr, J. Koeth, S. Höfling, Sensors, 24, 2024, 3843,

# 192 Towards miniaturized gas sensors based on substrate-integrated hollow waveguides and interband cascade light emitting diodes

M. Hlavatsch, N. Hab, N. Schäfer, R. Weih, J. Koeth, B. Mizaikoff, Sens. Diagn., 2, 2023, 438-444,

Optical properties

nanoplus mid-infrared LEDs show outstanding spectral and electrical properties.

Spectrum 5.1 µm MIR LED

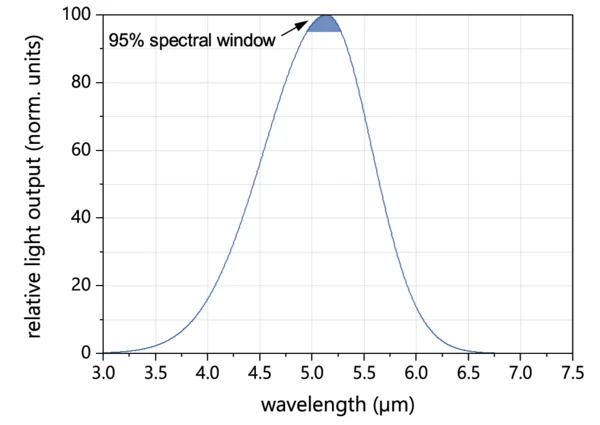

Typical spectrum of a nanoplus 5.1 µm mid-infrared LED

PI Curve 5.1 µm MIR LED

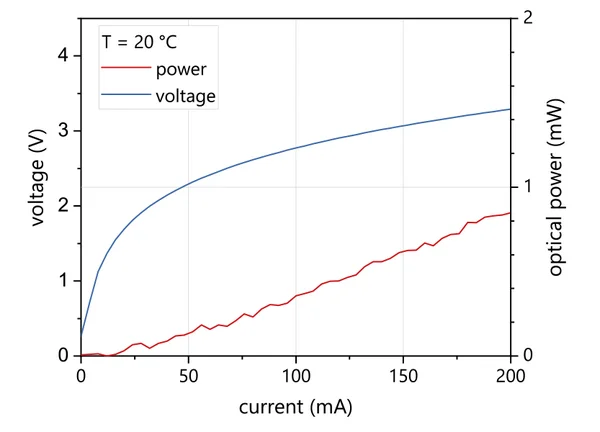

Typical power, current and voltage characteristics of a nanoplus 5.1 µm mid-infrared LED

Learn more

Product Brief

More information

nanoplus MIR LEDs rely on the same technology as our very successful interband cascade lasers.The advantage over previous interband cascade LEDs can be attributed to stage grouping at one single antinode of the optical field and the usage of low absorbing substrates. For more insights into our technology please refer to our paper "High efficiency mid-infrared interband cascade LEDs grown on low absorbing substrates emitting >5 mW of output power" in the paper section.
