6000 nm - 11000 nm Distributed Feedback Laser

Discover Our Wavelengths

Distributed Feedback Laser

6000 nm - 11000 nm Distributed Feedback Laser

Select your target wavelength at any wavelength between 6000 nm and 11000 nm.

Specifications
Mountings & Accessories
Papers & Links
Specifications
parameters
symbol
unit
minimum
typical
maximum
parameters

operating wavelength (at Top, Iop)

symbol

λop

unit

nm

minimum
typical

0.1 nm

maximum
parameters

optical output power (at λop)

symbol

Pop

unit

mW

minimum

10

typical

20

maximum
parameters

operating current

symbol

Iop

unit

mA

minimum
typical

500

maximum

1500

parameters

operating voltage

symbol

Vop

unit

V

minimum
typical

9

maximum

15

parameters

threshold current

symbol

Ith

unit

mA

minimum
typical

400

maximum
parameters

side mode suppression ratio

symbol

SMSR

unit

dB

minimum
typical

> 35

maximum
parameters

current tuning coefficient

symbol

CI

unit

nm / mA

minimum

0.05

typical

0.1

maximum

0.15

parameters

temperature tuning coefficient

symbol

CT

unit

nm / K

minimum
typical

0.7

maximum
parameters

operating chip temperature

symbol

Top

unit

°C

minimum

-10

typical

20

maximum

45

parameters

operating case temperature (non-condensing)

symbol

TC

unit

°C

minimum

10

typical

20

maximum

30

parameters

storage temperature (non-condensing)

symbol

TS

unit

°C

minimum

0

typical

20

maximum

50

Mountings & Accessories
HHL - our QCL package
High-heatload package (incl. collimation)
  • availability: 6000 nm - 14000 nm
  • TEC: integrated
  • NTC: integrated
  • window: yes
  • plug&play: yes
  • collimation: with lens, collimated beam (<7mrad)

Optical properties

Optical properties

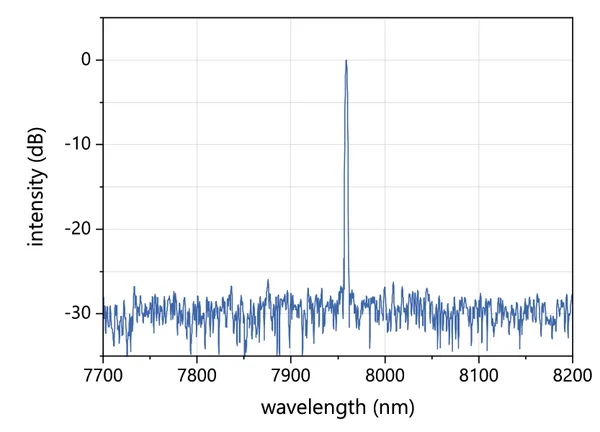

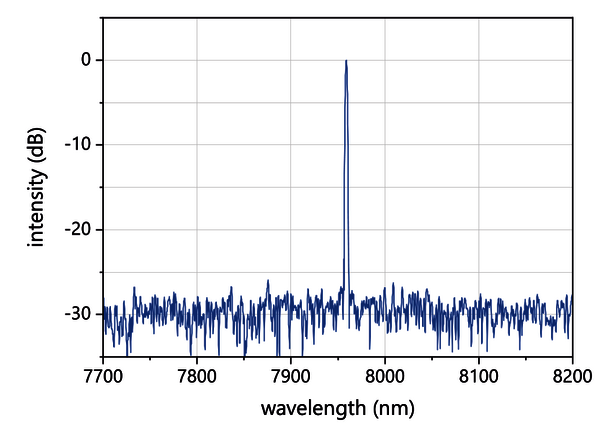

Spectrum 7970 nm DFB QCL

Typical spectrum of a nanoplus 7970 nm distributed feedback quantum cascade laser (DFB QCL)

Tuning 7970 nm DFB QCL

Typical mode hop free tuning of a nanoplus 7970 nm distributed feedback quantum cascade laser (DFB QCL)

PI Curve 7970 nm DFB QCL

Typical power, current and voltage characteristics of a nanoplus 7970 nm distributed feedback quantum cascade laser (DFB QCL)

Learn more

Product Brief

More information

nanoplus uses a unique and patented technology for DFB laser manufacturing. We apply a lateral metal grating along the ridge waveguide, which is independent of the material system. Read more about our patented distributed feedback technology.
