1512.2 nm
TOP Wavelength

Discover Our Wavelengths

Distributed Feedback Laser

1512.2 nm
TOP Wavelength

DFB laser diodes at 1512.2 nm are used for ammonia detection. Please have a look at the key features, specifications and applications.

Specifications
Mountings & Accessories
Applications
Papers & Links
Specifications
parameters
symbol
unit
minimum
typical
maximum
parameters

operating wavelength (at Top, Iop)

symbol

λop

unit

nm

minimum
typical

1512.2

maximum
parameters

optical output power (at λop)

symbol

Pop

unit

mW

minimum
typical

8

maximum
parameters

operating current

symbol

Iop

unit

mA

minimum
typical

70

maximum
parameters

operating voltage

symbol

Vop

unit

V

minimum
typical

2

maximum
parameters

threshold current

symbol

Ith

unit

mA

minimum

10

typical

25

maximum

30

parameters

side mode suppression ratio

symbol

SMSR

unit

dB

minimum
typical

> 35

maximum
parameters

current tuning coefficient

symbol

CI

unit

nm / mA

minimum

0.008

typical

0.015

maximum

0.02

parameters

temperature tuning coefficient

symbol

CT

unit

nm / K

minimum

0.07

typical

0.10

maximum

0.14

parameters

operating chip temperature

symbol

Top

unit

°C

minimum

+20

typical

+25

maximum

+50

parameters

operating case temperature (non-condensing)

symbol

TC

unit

°C

minimum

-20

typical

+25

maximum

+50

parameters

storage temperature (non-condensing)

symbol

TS

unit

°C

minimum

-40

typical

+20

maximum

+80

Mountings & Accessories
TO56 - the absolute basic
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: uncoated cap (optional)
  • window: uncoated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost
TO5 - our workhorse
  • availability: 760 nm - 3000 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • cap: AR coated cap (optional)
  • window: AR coated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost
c-mount - basic OEM integration
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: low cost
SM-BTF - our fiber-coupled workhorse
  • availability: 760 nm - 5500 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • plug&play: fiber-coupled beam
  • size: large footprint
  • costs: higher cost than free space
PM-BTF - high-end fiber coupling
  • availability: 1064 nm - 2050 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • plug&play: fiber-coupled beam
  • size: large footprint
  • costs: higher costs than free space
chip on heatspreader - high-end OEM integration
  • availability: 760 nm - 6000 nm
  • TEC: no TEC
  • NTC: integrated NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: smallest footprint
  • costs: low cost
Heatsink for TO5 / TO66
  • availability: 760 nm - 6500 nm
  • NTC: integrated (optional)
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: none
Heatsink for TO5 with collimation
  • availability: 760 nm - 1850 nm
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: collimation with up to 40 % power loss
Applications
NH3
Monitoring of breath gas: NH3

Ammonium is used as a biomarker for helicobacter pylori infections. These infections are responsible for stomach ulcers. Breath analysis diagnoses the disease in a non-invasive way sparing patients a disagreeable gastroscopy.

[ 63 ]
NOx
Emission control: NOx

NH3 is added in combustion processes to reduce emissions of the flue gas NOx. The two compounds will react to uncritical N2 and H2O. To avoid any corrosive or environmental effects from overuse, the gas volume needs to be continuously monitored.

[ 178 , 117 , 116 , 72 , 3 ]

Optical properties

nanoplus distributed feedback lasers show outstanding spectral, tuning and electrical properties.

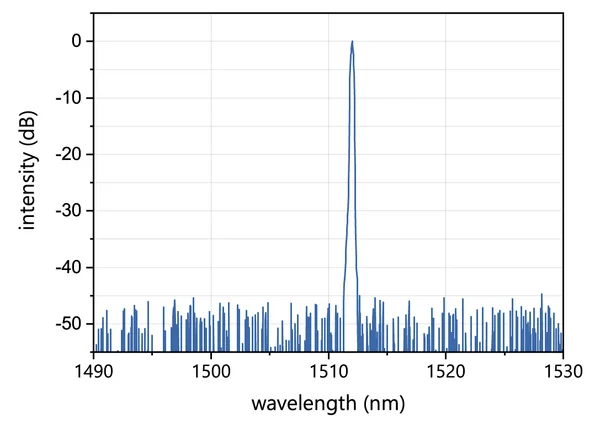

Spectrum 1512 nm DFB

Typical spectrum of a nanoplus 1512 nm distributed feedback laser diode

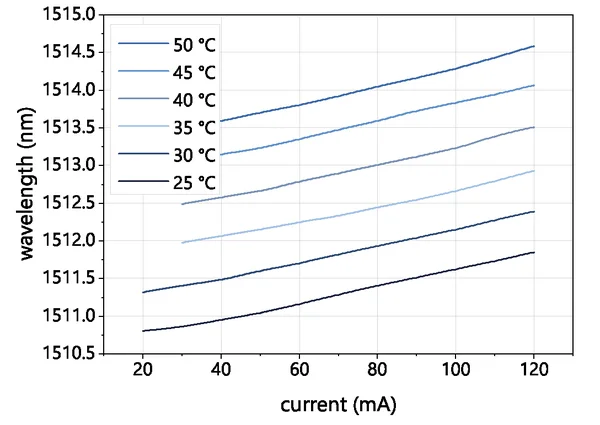

Tuning 1512 nm DFB

Typical mode hop free tuning of a nanoplus 1512 nm distributed feedback laser diode

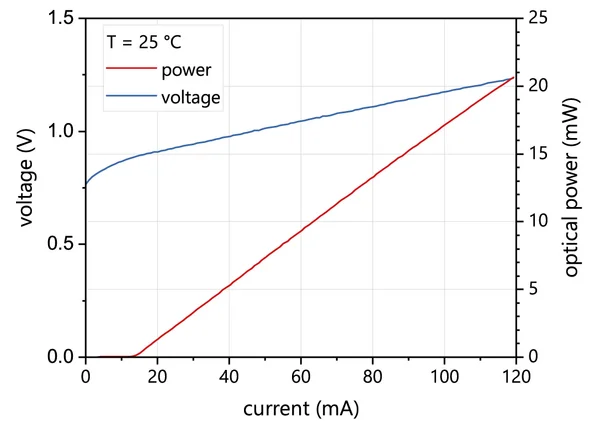

PI Curve 1512 nm DFB

Typical power, current and voltage characteristics of a nanoplus 1512 nm distributed feedback laser diode

Learn more

Product Brief

More information

nanoplus uses a unique and patented technology for DFB laser manufacturing. We apply a lateral metal grating along the ridge waveguide, which is independent of the material system. Read more about our patented distributed feedback technology.

Request for quotation

Your Requirement

Request for quotation

Send your message
