760 nm - 840 nm Fabry-Pérot Laser

Discover Our Wavelengths

Fabry-Pérot Laser

760 nm - 840 nm Fabry-Pérot Laser

nanoplus offers FP laser diodes at any wavelength between 760 nm and 840 nm.
Specifications
Mountings & Accessories
Specifications
parameters
symbol
unit
minimum
typical
maximum
parameters
operating wavelength (at Top, Iop)
symbol
λop
unit
nm
minimum
-20
typical
specify
maximum
+20
parameters
optical output power (at λop)
symbol
Pop
unit
mW
minimum
typical
10
maximum
parameters
operating current
symbol
Iop
unit
mA
minimum
typical
30
maximum
parameters
operating voltage
symbol
Vop
unit
V
minimum
typical
3
maximum
parameters
threshold current
symbol
Ith
unit
mA
minimum
typical
50
maximum
parameters
operating chip temperature
symbol
Top
unit
°C
minimum
+20
typical
+25
maximum
+50
parameters
operating case temperature (non-condensing)
symbol
TC
unit
°C
minimum
-20
typical
+25
maximum
+50
parameters
storage temperature (non-condensing)
symbol
TS
unit
°C
minimum
-40
typical
+20
maximum
+80
Download data sheet
Mountings & Accessories
TO5 - our workhorse
Download data sheet
  • availability: 760 nm - 3000 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • cap: AR coated cap (optional)
  • window: AR coated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost
TO56 - the absolute basic
Download data sheet
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: uncoated cap (optional)
  • window: uncoated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost
c-mount - basic OEM integration
Download data sheet
  • availability: 760 nm - 3000 nm
  • TEC: no TEC
  • NTC: no NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: low cost
SM-BTF - our fiber-coupled workhorse
Download data sheet
  • availability: 760 nm - 5500 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • plug&play: fiber-coupled beam
  • size: large footprint
  • costs: higher cost than free space
chip on heatspreader - high-end OEM integration
Download data sheet
  • availability: 760 nm - 6000 nm
  • TEC: no TEC
  • NTC: integrated NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: smallest footprint
  • costs: low cost
Heatsink for TO5 / TO66
Download data sheet
  • availability: 760 nm - 6500 nm
  • NTC: integrated (optional)
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: none
Heatsink for TO5 with collimation
Download data sheet
  • availability: 760 nm - 1850 nm
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: collimation with up to 40 % power loss

Optical properties

nanoplus Fabry-Pérot lasers show outstanding spectral and electrical properties.

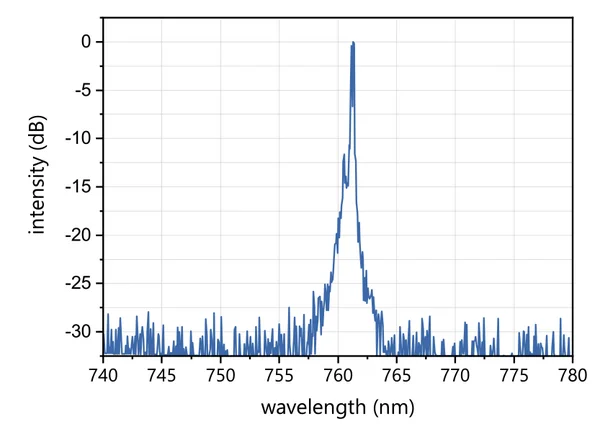

Spectrum 761 nm FP

Typical spectrum of a nanoplus 761 nm Fabry-Pérot laser diode

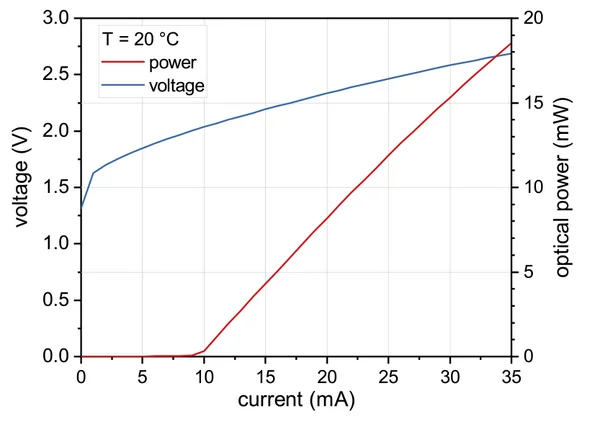

PI Curve 761 nm FP

Typical power, current and voltage characteristics of a nanoplus 761 nm Fabry-Pérot laser diode

Learn more

Product Brief

More information
nanoplus uses a unique and patented technology for Fabry-Pérot laser manufacturing. We follow a ridge waveguide approach, which is independent of the material system.
