2800 nm - 6500 nm Fabry-Pérot Laser

Discover Our Wavelengths

Fabry-Pérot Laser

2800 nm - 6500 nm Fabry-Pérot Laser

nanoplus offers FP laser diodes at any wavelength between 2800 nm and 6500 nm.

Specifications
Mountings & Accessories
Specifications
parameters
symbol
unit
minimum
typical
maximum
parameters

operating wavelength (at Top, Iop)

symbol

λop

unit

nm

minimum

-20

typical

specify

maximum

+20

parameters

optical output power (at λop)

symbol

Pop

unit

mW

minimum
typical

5

maximum
parameters

operating current

symbol

Iop

unit

mA

minimum
typical

100

maximum
parameters

operating voltage

symbol

Vop

unit

V

minimum

4

typical
maximum

6

parameters

threshold current

symbol

Ith

unit

mA

minimum
typical

50

maximum
parameters

operating chip temperature

symbol

Top

unit

°C

minimum

-10

typical

depends on λ

maximum

+50

parameters

operating case temperature (non-condensing)

symbol

TC

unit

°C

minimum

-20

typical

+25

maximum

+50

parameters

storage temperature (non-condensing)

symbol

TS

unit

°C

minimum

-40

typical

+20

maximum

+80

Mountings & Accessories
SM-BTF - our fiber-coupled workhorse
  • availability: 760 nm - 5500 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • plug&play: fiber-coupled beam
  • size: large footprint
  • costs: higher cost than free space
TO66 - our workhorse for ICLs
  • availability: 2800 nm - 6500 nm
  • TEC: integrated large TEC
  • NTC: integrated NTC
  • cap: AR coated cap (optional)
  • window: AR coated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost
chip on heatspreader - high-end OEM integration
  • availability: 760 nm - 6000 nm
  • TEC: no TEC
  • NTC: integrated NTC
  • cap: NA
  • window: NA
  • plug&play: collimation required
  • size: smallest footprint
  • costs: low cost

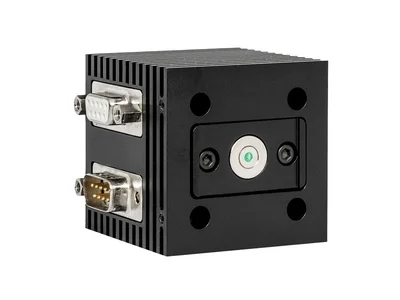

Heatsink for TO5 / TO66
  • availability: 760 nm - 6500 nm
  • NTC: integrated (optional)
  • heat distribution: warranted
  • connectors: for laser diode driver & temperature controller
  • posts: M6 thread for optical table
  • cage system: standard
  • collimation: none

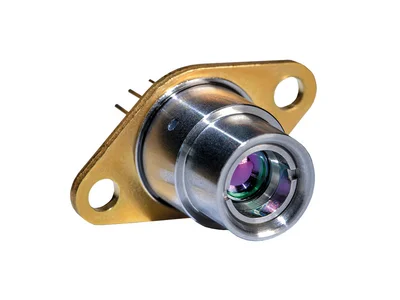

Lens on cap
  • availability: 1850 nm - 5500 nm
  • heat distribution: none, use separate heatsink
  • connectors: TO66 connectors only
  • posts: none, use separate heatsink
  • cage system: none, use separate heatsink
  • collimation: high-end collimation, divergence < 4 mrad

Optical properties

nanoplus Fabry-Pérot lasers show outstanding spectral and electrical properties.

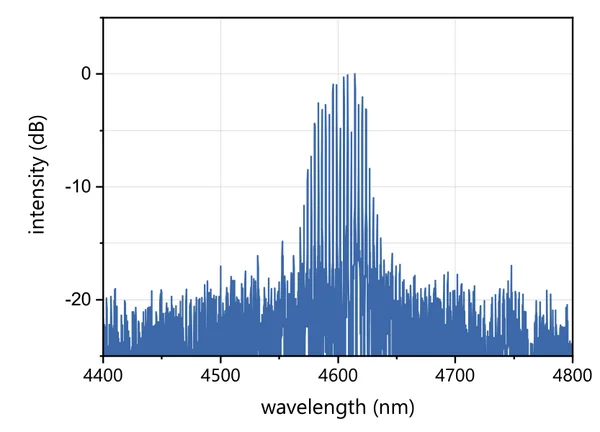

Spectrum 4600 nm FP

Typical spectrum of a nanoplus 4600 nm Fabry-Pérot interband cascade laser

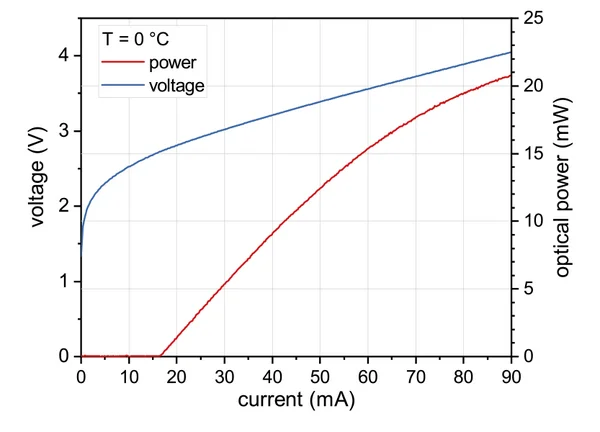

PI Curve 4600 nm FP

Typical power, current and voltage characteristics of a nanoplus 4600 nm Fabry-Pérot interband cascade laser

Learn more

Product Brief

More information

nanoplus uses a unique and patented technology for Fabry-Pérot laser manufacturing. We follow a ridge waveguide approach, which is independent of the material system.
