1700 nm - 2300 nm Superluminescent Diode

Discover Our Wavelength

Your SLD

1700 nm - 2300 nm Superluminescent Diode

nanoplus offers superluminescent diodes (SLDs) at any wavelength between 1700 nm and 2300 nm.

Specifications
Mountings & Accessories
Specifications
parameters
symbol
unit
minimum
typical
maximum
parameters

operating wavelength (at Top, Iop)
symbol

λop
unit

nm
minimum

2235
typical

2245
maximum

2255
parameters

optical output power (at λop)
symbol

Pop
unit

mW
minimum
typical

15
maximum
parameters

operating current
symbol

Iop
unit

mA
minimum
typical

300
maximum
parameters

operating voltage
symbol

Vop
unit

V
minimum
typical

2
maximum
parameters

spectral bandwidth (FWHM)
symbol

Δ λ
unit

nm
minimum
typical

80
maximum
parameters

current tuning coefficient
symbol

CI
unit

nm / mA
minimum

0.04
typical

0.08
maximum

0.16
parameters

temperature tuning coefficient
symbol

CT
unit

nm / K
minimum

1.1
typical

1.4
maximum

1.7
parameters

operating case temperature (non-condensing)
symbol

TC
unit

°C
minimum
typical

+25
maximum
parameters

storage temperature (non-condensing)
symbol

TS
unit

°C
minimum

-40
typical

+20
maximum

+80

Download data sheet
Specifications
TO66 - our workhorse for ICLs

Download data sheet
  • availability: 2800 nm - 6500 nm
  • TEC: integrated large TEC
  • NTC: integrated NTC
  • cap: AR coated cap (optional)
  • window: AR coated window (optional)
  • plug&play: collimation required
  • size: small footprint
  • costs: low cost
SM-BTF - our fiber-coupled workhorse

Download data sheet
  • availability: 760 nm - 2360 nm
  • TEC: integrated TEC
  • NTC: integrated NTC
  • plug&play: fiber-coupled beam
  • size: large footprint
  • costs: higher cost than free space

Optical properties

nanoplus superluminescent diodes show outstanding spectral and electrical properties.

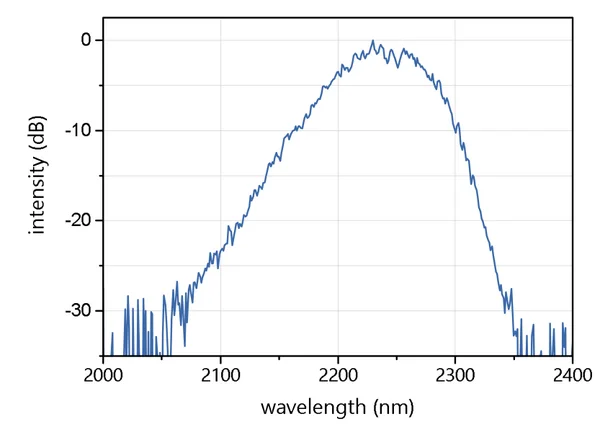

Spectrum 2245 nm SLD

Typical spectrum of a nanoplus 2245 nm superluminescent diode

PI Curve 2245 nm SLD

Typical power, current and voltage characteristics of a nanoplus 2245 nm superluminescent diode

Learn more

Product Brief

More information

nanoplus SLD are specially designed and characterized to fit your requirements. For more than 20 years, nanoplus has been manufacturing DFB and FP lasers with excellent performance: the same technology is used for our SLDs which we offer at any wavelength between 760 nm and 2900 nm.
