2600 nm - 2900 nm Distributed Feedback Laser

Select your target wavelength at any wavelength between 2600 nm and 2900 nm. The table below presents typical specifications, available mountings as well as application references & further reading.

Specifications

Mountings & Accessories

Applications

Papers & Links

Specifications

parameters	symbol	unit	minimum	typical	maximum
parameters operating wavelength (at T_op, I_op)	symbol λop	unit nm	minimum	typical 0.1 nm	maximum
parameters optical output power (at λ_op)	symbol P_op	unit mW	minimum	typical 2	maximum
parameters operating current	symbol I_op	unit mA	minimum	typical 100	maximum
parameters operating voltage	symbol V_op	unit V	minimum	typical 2.3	maximum
parameters threshold current	symbol I_th	unit mA	minimum 30	typical 50	maximum 80
parameters side mode suppression ratio	symbol SMSR	unit dB	minimum	typical > 35	maximum
parameters current tuning coefficient	symbol C_I	unit nm / mA	minimum 0.01	typical 0.02	maximum 0.05
parameters temperature tuning coefficient	symbol C_T	unit nm / K	minimum 0.15	typical 0.20	maximum 0.28
parameters operating chip temperature	symbol T_op	unit °C	minimum +20	typical +25	maximum +50
parameters operating case temperature (non-condensing)	symbol T_C	unit °C	minimum -20	typical +25	maximum +50
parameters storage temperature (non-condensing)	symbol T_S	unit °C	minimum -40	typical +20	maximum +80

Download data sheet

Mountings & Accessories

SM-BTF - our fiber-coupled workhorse

Download data sheet

availability: 760 nm - 5500 nm
TEC: integrated TEC
NTC: integrated NTC

plug&play: fiber-coupled beam
size: large footprint
costs: higher cost than free space

TO56 - the absolute basic

Download data sheet

availability: 760 nm - 3000 nm
TEC: no TEC
NTC: no NTC
cap: uncoated cap (optional)

window: uncoated window (optional)
plug&play: collimation required
size: small footprint
costs: low cost

TO5 - our workhorse

Download data sheet

availability: 760 nm - 3000 nm
TEC: integrated TEC
NTC: integrated NTC
cap: AR coated cap (optional)

window: AR coated window (optional)
plug&play: collimation required
size: small footprint
costs: low cost

c-mount - basic OEM integration

Download data sheet

availability: 760 nm - 3000 nm
TEC: no TEC
NTC: no NTC
cap: NA

window: NA
plug&play: collimation required
size: low cost

chip on heatspreader - high-end OEM integration

Download data sheet

availability: 760 nm - 6000 nm
TEC: no TEC
NTC: integrated NTC
cap: NA

window: NA
plug&play: collimation required
size: smallest footprint
costs: low cost

Heatsink for TO5 / TO66

Download data sheet

availability: 760 nm - 6500 nm
NTC: integrated (optional)
heat distribution: warranted
connectors: for laser diode driver & temperature controller
posts: M6 thread for optical table

cage system: standard
collimation: none

Lens on cap

Download data sheet

availability: 1850 nm - 6500 nm
heat distribution: none, use separate heatsink
connectors: TO66 connectors only
posts: none, use separate heatsink

cage system: none, use separate heatsink
collimation: high-end collimation, divergence < 4 mrad

Applications

Use Cases

Discover more

Gas Detection

2600 nm - 2900 nm

Water vapour, hydrogen fluoride, hydrogen sulfide, nitrogen oxide, nitrous oxide and carbon dioxide show absorption features in the wavelength window between 2600 nm and 2900 nm.

[ 178 , 171 , 167 ]

Papers & Links

# 179 The Chicago Water Isotope Spectrometer (ChiWIS-lab): A tunable diode laser spectrometer for chamber-based measurements of water vapor isotopic evolution during cirrus formation

L. C. Sarkozy, B. W. Clouser, K. D. Lamb, E. J. Stutz, H. Saathoff, O. Möhler, V. Ebert, E. J. Moyer, Rev. Sci. Instrum., Vol. 91, Iss. 4, 2020, 045120,

# 178 Quartz-Enhanced Photoacoustic Sensors for Detection of Eight Air Pollutants

R. De Palo, A. Elefante, G. Biagi, F. Paciolla, R. Weih, V. Villada, A. Zifarelli, M. Giglio, A. Sampaolo, V. Spagnolo, P. Patimisco, Adv. Phot. Res., Vo. 4, Iss. 6, 2023,

# 175 Proof-of-Concept Tabletop Tunable Diode Laser Absorption Spectrometer Instrument (TDLAS) for the Detection of H₂O(v) in Lunar Regolith for the Canadian Multipurpose Autonomous Penetrator for Lunar Exploration (MAPLE) Project

A. Gmereka, Dr. A. Elleryb, Dr. E. Cloutisc, B. Thibodeaud, IAC, 73rd, 2022, Paris, France,

# 173 Quantification of Elevated Hydrogen Cyanide (HCN) Concentration Typical in a Residential Fire Environment Using Mid-IR Tunable Diode Laser

S. Ghanekar, G. P. Horn, R. M. Kesler, R. Rajasegar, J. Yoo and T. Lee, Appl. Spectrosc., 77(4), 2023, 382-392,

# 171 Orion LAMS Laser Absorption Spectrometer for Human Spaceflight - Flight Unit Build and Test Results

J. Pohly, L. Christensen, M. Skow, K. Mansour, International Conference on Environmental Systems, July, 31st, 2020,

# 168 High resolution gas mid-infrared spectroscopy using circular multireflection (CMR) cell

T. Phan, D. Tran, J. Esper, C. Nixon, and G. Nehmetallah, Proc. SPIE, 11741, Infrared Technology and Applications XLVII, 2021,

# 167 Analysis of the Stable Isotope Ratios (18O/16O, 17O/16O, and D/H) in Glacier Water by Laser Spectrometry

X. Cui, W. Chen, M. W. Sigrist, E. Fertein, P. Flament, K. De Bondt, N. Mattielli, analytical chemistry, 92, 2020, 4512−4517,

# 159 Direct absorption spectroscopy baseline fitting for blended absorption features

J. M. Weisberger, J. P. Richter, R. A. Parker, P. E. DesJardin, Appl. Optics, 2018,

# 156 Ignition-delay-time/time-resolved CO₂-concentration measurements during the combustion of iC4H10/H2 mixtures

D. He, Z. Peng, Y. Ding, Fuel, Vol. 284, 2021,

# 155 Time-resolved CO₂ concentration and ignition delay time measurements in the combustion processes of n-butane/hydrogen mixtures

H. Dong, P. Zhimin, D. Yanjun, Combustion and Flame, Vol. 207, 2019, 222 - 231,

# 126 Contrast enhancement of surface layers with fast middle-infrared scanning

T. Kümmel, T. Teumer, P. Dörnhofer, F.-J. Methner, B. Wängler, M. Rädle, Heliyon, Vol. 5, Iss. 9, September 2019,

# 99 A photonic platform for donor spin qubits in silicon

K. J. Morse, R. J. S. Abraham, A. DeAbreu, C. Bowness, T. S. Richards, H. Riemann, N. V. Abrosimov, P. Becker, H.-J. Pohl, M. L. W. Thewalt, S. Simmons , Sci. Adv., Vol. 3, No.7, 2017, e1700930.,

# 96 Fiber-coupled 2.7 μm laser absorption sensor for CO₂ in harsh combustion environments

R. M. Spearrin, C. S. Goldenstein, J. B. Jeffries and R. K. Hanson, Meas. , Sci. Technol., 24.April.2013, 055107.,

# 76 Diode laser-based trace detection of hydrogen-sulfide at 2646.3 nm and hydrocarbon spectral interference effects

R. Sharma, C. Mitra, V. Tilak, 55(3) , Opt. Eng. , 55 (3), 14th March 2016, 037106,

# 73 Time-multiplexed open-path TDLAS spectrometer for dynamic, sampling-free, Interstitial H218O and H216O vapor detection in ice clouds

B. Kuehnreich, S. Wagner, J.C. Habig, O. Moehler, H. Saathoff, V. Ebert , App. Phys. B, 119, 2015, pp. 177-187.,

# 69 A quartz-enhanced photoacoustic sensor for H₂S trace-gas detection at 2.6µm

S. Viciani, M. Siciliani de Cumis, S. Borri, P. Patimisco, A. Sampaolo, G. Scamarcio, P. De Natale, F. D'Amato, V. Spagnolo, App. Phys. B, 119, 2015, pp. 21-27,

# 65 H₂O temperature sensor for low-pressure flames using tunable Diode laser Absorption near 2.9 µm

S. Li, A. Farooq, R.K. Hanson, Meas. Sci. Technol., 22, 2011, pp. 125301-125311.,

# 44 High sensitivity Faraday rotation spectrometer for hydroxyl radical detection at 2.8 µm

W. Zhao, G. Wysocki, W. Chen, W. Zhang , Appl. Phys. B, 109, 3, November 2012, pp. 511-519.,

# 33 DFB laser diodes in the wavelength range from 760 nm to 2.5 µm

J. Seufert, M. Fischer, M. Legge, J. Koeth, R. Werner, M. Kamp, A. Forchel, Spectroch. Acta, Part A 60, 2004, pp. 3243-3247.,

# 30 Kalman filtering real-time measurements of H₂O isotopologue ratios by laser absorption spectroscopy at 2.73 µm

T. Wu, W. Chen, E. Kerstel, E. Fertein, X. Gao, J. Koeth, Karl Roessner, D. Brueckner , Opt. Lett., 35, 5, 2010, pp. 634.636.,

# 12 CO₂ concentration and temperature sensor for combustion gases using diode-laser absorption near 2.7 µm

A. Farooq, J.B. Jeffries, R.K. Hanson, Appl. Phys. B, 90, 2008, pp. 619-628.,

# 9 DFB Lasers Between 760 nm and 16 µm for Sensing Applications

W. Zeller, L. Naehle, P. Fuchs, F. Gerschuetz, L. Hildebrandt, J. Koeth , Sensors, 10, 2010, pp. 2492-2510,

Optical properties

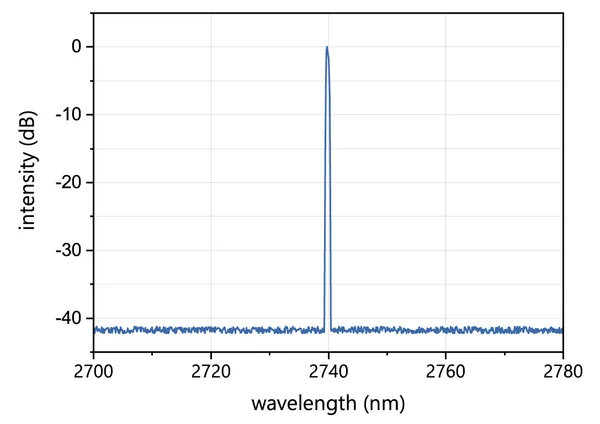

Spectrum 2740 nm DFB

Typical spectrum of a nanoplus 2740 nm distributed feedback laser diode

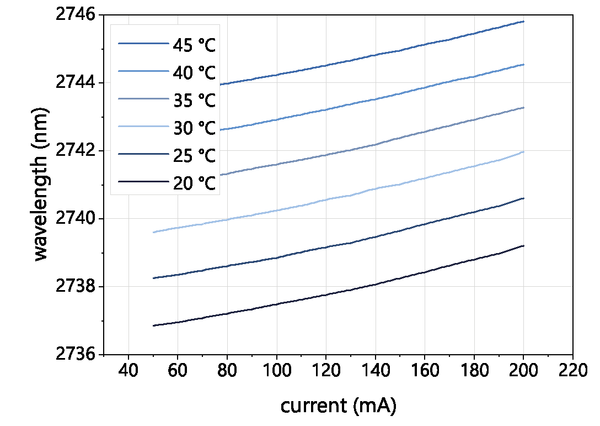

Tuning 2740 nm DFB

Typical mode hop free tuning of a nanoplus 2740 nm distributed feedback laser diode

PI Curve 2740 nm DFB

Typical power, current and voltage characteristics of a nanoplus 2740 nm distributed feedback laser diode

Learn more

Product Brief

More information

nanoplus uses a unique and patented technology for DFB laser manufacturing. We apply a lateral metal grating along the ridge waveguide, which is independent of the material system. Read more about our patented distributed feedback technology.
